DevCad Cam Pro by the devCad Team





Machine along Vector Toolpath

This has been drawn in a Cad Drawing document by:

  • using the TEXT command
  • exploding it to a Region  (EXPLODE command)
  • applying the right Hatch Style to the region
  • exploding the Region to lines  (EXPLODE command)
  • then all has been copied & pasted into the Cam Project.

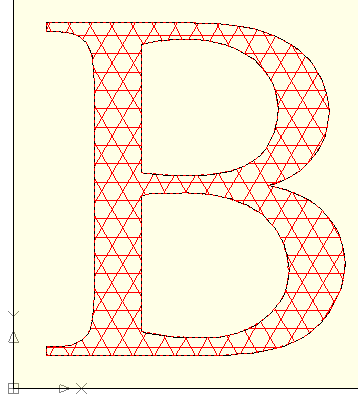

    The Red lines show the real Machine along Vector toolpath.

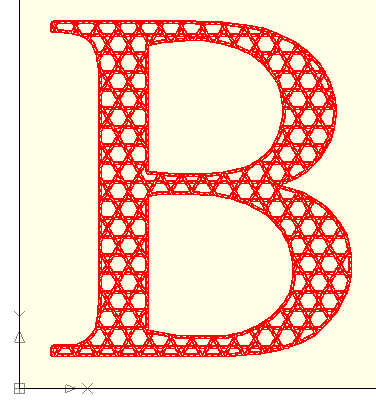

    Below the same Path with the preview of the real toolpath width:


    The white dotted lines show the centerline of the real Toolpath.

  Other Toolpath examples:
