DevFus by the devCad Team





DevFus, the innovative application to draw fuselages


  • Using DevFus you can create in a very simple way a fuselage drawing
  • The Project Wizard will drive you to draw the fuselage using a step by step approach.

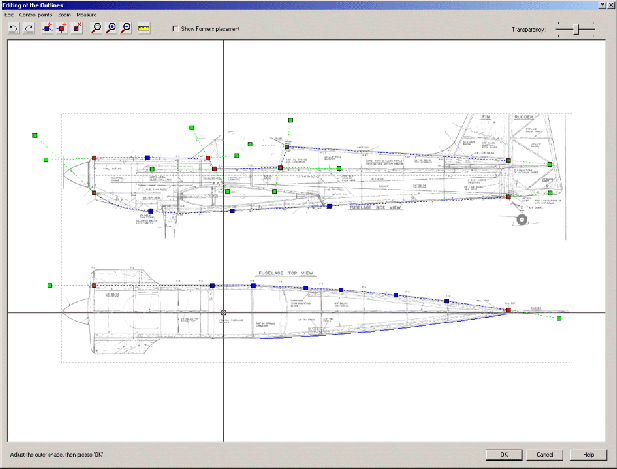

    To draw the fuselage Side and Top view you can for example adjust the Outlines to follow a scanned image of the fuselage:

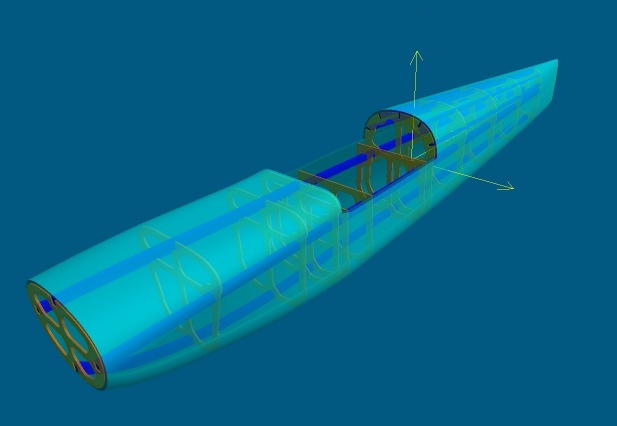

  • You can have also the 3D View of the fuselage, but no 3D drawing skill is required!
    See below an example:

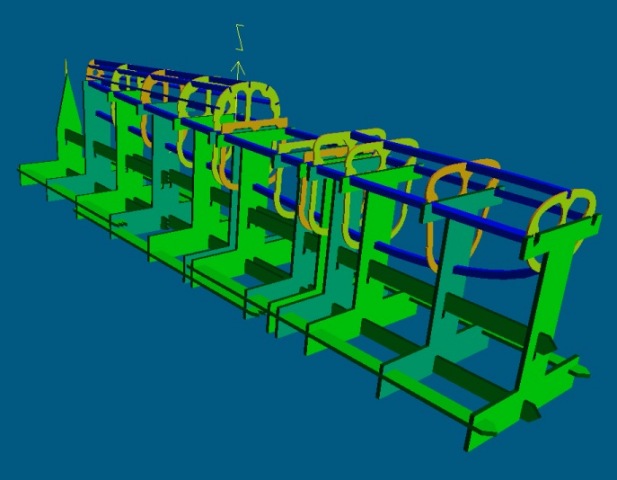

  • You can also draw the parts to build a Jig Structure to help you to assemply the fuselage. No more drawing is requested to do that.
    See below an example:

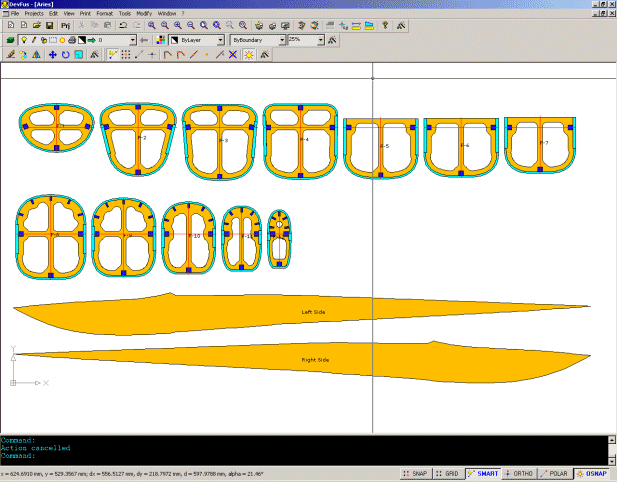

  • The final result is a Cad drawing of the parts. This drawing is devCad compatible, but a devCad license is not required, as some devCad function to modify, save, export to DXF and print the drawing are included in devFus
    See below an example:
  • DevFus Cam, the version of devFus with Cam features, can also create a Cam Drawing, compatible with devCad Cam Pro.
    Again, devCad Cam Pro is not required, as its main features are inclused in devFus Cam

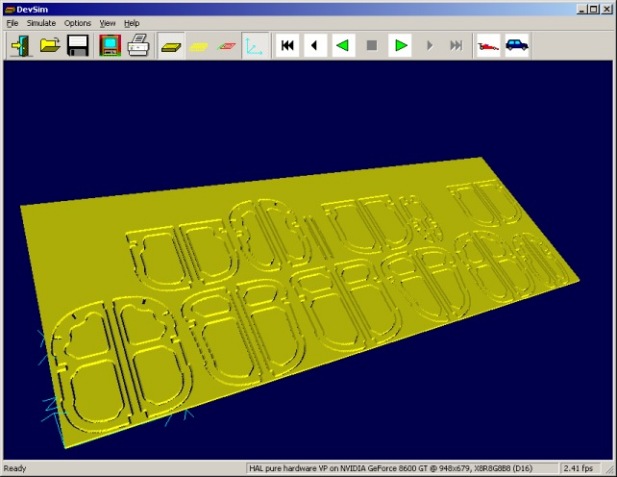

    See below an example of the preview of cutting job of the Formers:
  • Try devFus, some fuselage examples are included, so you can learn how easy is to create your own fuselages taking a look at them.
    A step by step help file is also included
  • To download devFus and devFus Cam see the Download section of the web site.
  • To get a license of devFus or devFus Cam see the Prices section of the web site.


   New features added since release 1.00

  Improved control formers tracing


You can define complex shapes using a raster or DXF image as a background

  Angled formers


You can add angled formers, also intersecating one or more normal formers

  Wing slots


You can add Wing slots, using a DAT file or other shapes

  Lateral sides customization


You can customize the lateral sides, adding lightening holes, slots, or splitting them in more pieces

  Boxes


You can add one or more Boxes inside the fuselage, to contain rx equipment, the tank or other components

  Shaped Spars


You can add vertical or horizontal shaped spars, with slots for formers, wings, boxes and other components

  Vertical and Horizontal Decks


You can add vertical or horizontal decks, with slots for formers, wings, boxes and other components

  Formers holes customization


You can add customize the internal of normal and angled formers adding smart lightening holes and other slots.
The same for other parts like shaped spars, sides, decks and box faces

  Enhanced 3D preview


You can check every stage of the project by a faster 3D preview
