Objects creation and modification	Drawing geometric objects
Drawing splines
Overview     Operations     Commands

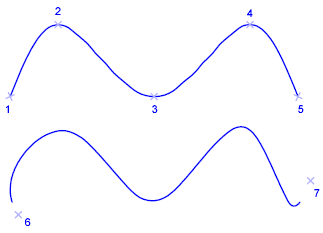

How to draw a spline, specifying some points

1. Click on the menu Draw Spline.
2. Specify the starting point of the spline (1).
3. Specify several points (2 through 5) to create the spline, then press ENTER.
4. Specify the starting and ending tangents (6, 7).

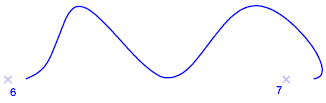

The spline shown here was drawn using the same points but different starting and ending tangents.

 Draw toolbar

 Command line: SPLINE
